Custom Ford 9” Rear

Differential and Rear End Components For Off Road Racing and Fun

Western Differential is your source for Jeep, Bronco and Blazer components. Get the High Performance Edge with quality and craftsmanship you can trust.

Off Road Bolt-In Applications; Customization is our specialty!

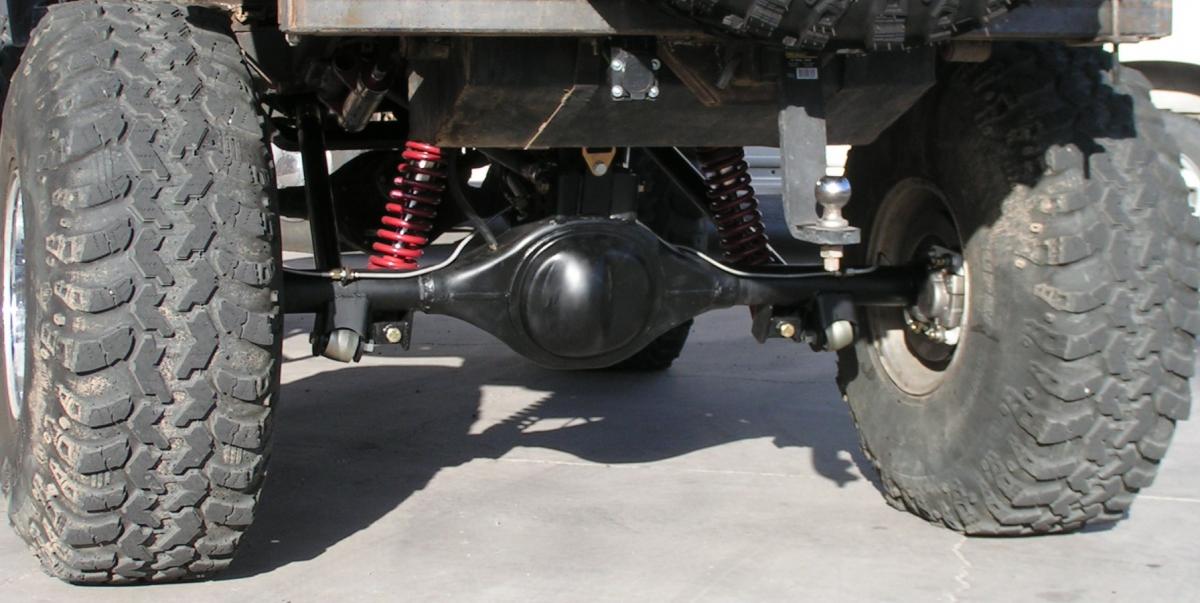

Western Differential’s Custom Ford 9” Direct Bolt-in applications are built with all new heavy duty housings with DOM tubes, steel ends, New -USA Made- Heavy Duty brackets and mounts.



Jeep CJ Rear

  • 1953-1986 Civilian

Jeep YJ, TJ/LJ, and JK Rear

  • 1987-96 YJ Wrangler
  • 1997-06 TJ/LJ Wrangler
  • 2007-Present JK Wrangler



Jeep XJ, ZJ, and WJ Rear

  • 1984-01 XJ Cherokee
  • 1993-98 ZJ Grand Cherokee
  • 1999-04 WJ Grand Cherokee

1 Ton 35 Spline Ford 9" Rear Assembly (TJ/LJ)

  • Starting Price = $3,850.00
  • With New -USA Made- Heavy Duty Housing and Laser Cut Brackets
  • With 35 Spline ARB Air Locker
  • With Strange Nodular 'S' Low Pinion Third Member
  • With Motive Gear 4.10, 4.57, 4.88 or 5.13 Ring and Pinion
  • With 35 Spline Custom One-Piece Semi Float Axles, WD 11.25" Rear Disc Brake Caliper and Rotor Including Park Brake, and 5 on 4.5"/5 on 5.5" Bolt Pattern

Options:

1) Currie Fabricated 9" Offroad (hex style) Housing = Add $400.00

2) 1 Ton 35 Spline Custom Full Float Axles, Spindles, WD Custom Drive Flange, New Hubs, WD 12.50" Disc Brake Caliper and Rotor Including Park Brakes, 5 on 4.5"/5 on 5.5" Bolt Pattern = Add $1,410.00

1/2 Ton Ford 9" Rear Assembly (JK)

  • Starting Price = $3,300.00
  • With New -USA Made- Heavy Duty Housing and Laser Cut JK Rear Brackets
  • With 31 Spline Steel Billet Tracloc
  • With Strange Nodular Low Pinion Third Member
  • With Motive Gear 4.10, 4.57, 4.88 or 5.13 Ring and Pinion
  • With 31 Spline Custom One-Piece Semi Float Axles
  • With Custom Housing Ends and ABS Tone Rings Designed to Reuse Factory Brakes

*Brakes Not Included

Options:

1) Currie Fabricated 9" Offroad (hex style) Housing = Add $400.00

2) Upgrade to 31 Spline ARB Air Locker = Add $650.00

3) Upgrade to 31 or 35 Spline Wave Trac = Add $405.00

4) Upgrade to 35 Spline ARB Air Locker = Add $700.00

5) Custom Brake Hardlines to Tee Fitting = Add $45.00

Brakes
Multiple rear brake options are available to fit your needs. Choose from Wilwood, Baer disc brakes or Western Differential’s own drum or disc performance brake kits.


Ford 9" and Dana 44 Rear Full Float Hub Assemblies.
